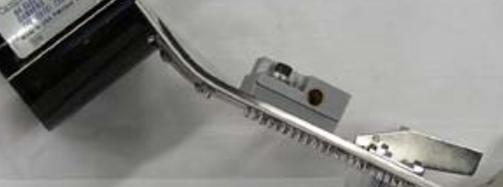

AE2001 Quick Change Hopper Track

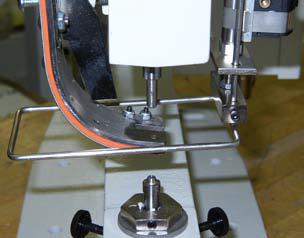

AE2001 Upper and Lower Setting Tools

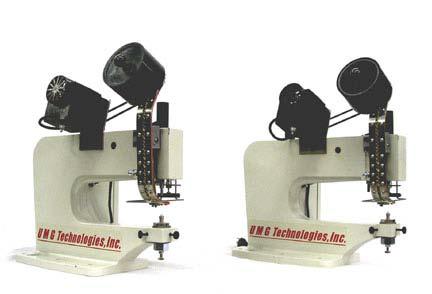

Introducing The Semi-Automatic AE-2001 Bulk Eyelet Bench Top Inserter

DESIGNED TO INSERT BULK FED EYELETS AT A RATE OF UP TO 3,600 COMPONENTS PER HOUR

THE BASE MACHINE INCLUDES

• Simple Machine Control

• Insertion Speeds up to 3,600 CPH

• Insertion Reliability 99.97

• PCB Thickness Range .010 - .250*

• Motor Driven Hopper Track Assembly

• Pneumatic Operation with Pressure Sensitive Compensation for Substrate


            Thickness Tolerances

• 10-Inch Depth to Receive Printed Circuit Boards

• Modular Cast “C” Frame

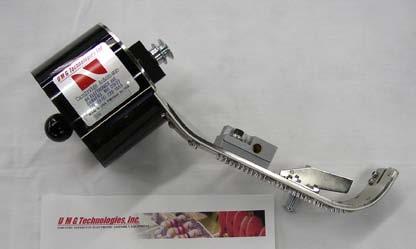

QUICK CHANGE HOPPER BOWL & TRACK

• Stainless Steel Track Base & Rails


• 4” Eyelet Hopper Bowl


• Hardened & Ground Eyelet Release Fingers (As seen in photo)

OPTIONAL FEATURES

• Additional Quick Change Hopper Track


• Maple Top Bench with Steel Legs (34” H, 30” W, 24” D)


• 2-Hand Actuated Insertion Cycle


• Padded Board Support


• Insertion Hole Locating Beam

SIMPLE MAN/MACHINE INTERFACE

• Foot Switch Actuated Insertion Cycle


• Insertion Hole Locating Beam (Optional)

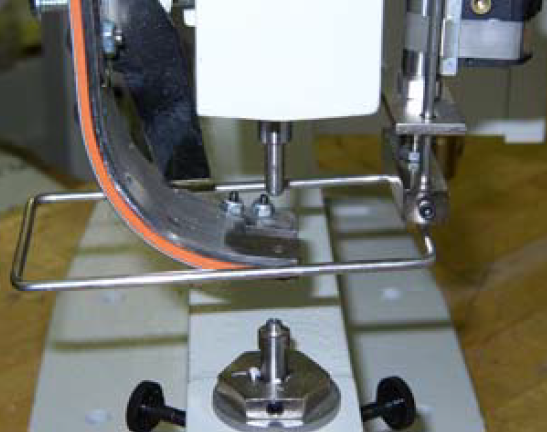

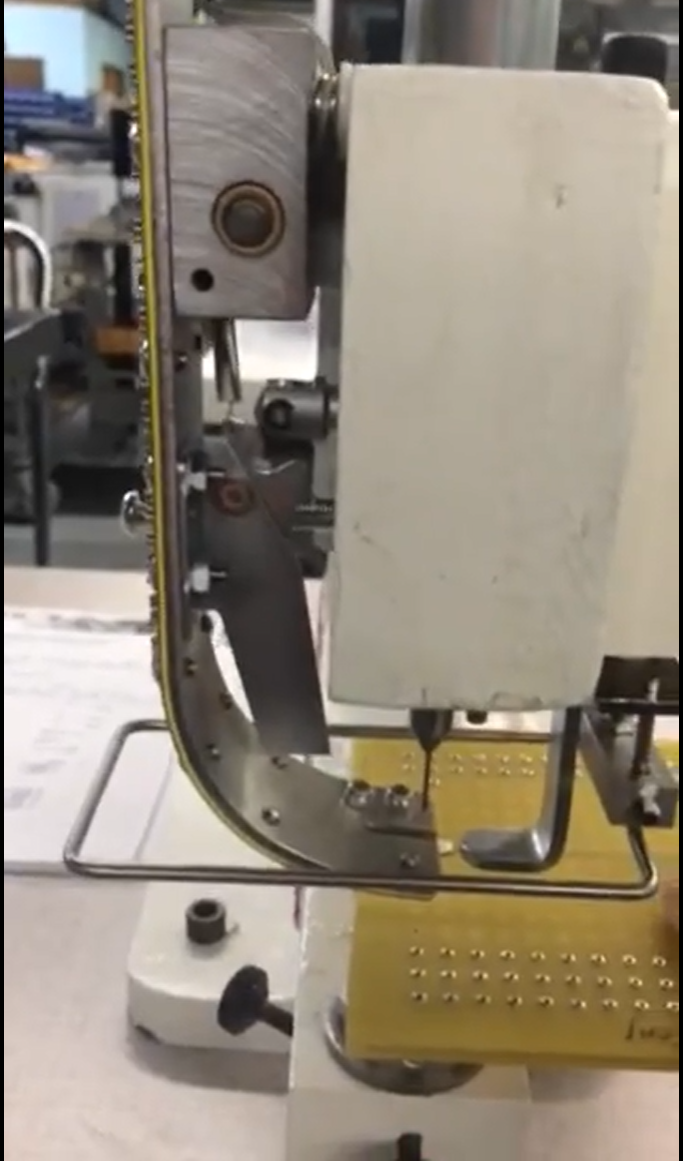

• Ring Guard – The ring guard (seen below) sweeps the area around the


            insertion. The AE2001 will not cycle if the ring encounters an obstruction.

OFF THE SHELF TECHNOLOGY

• Modular Panel Assembly Enclosure


• Cylinders, Solenoid Valve Stack, Compressed Air Preparation Unit Complete


            with Automatic Drain, Regulator and Gauge with 5 Micron Filter

• Permanently Lubricated Cylinders


• Minimal Amount of Fastener Differentiation


• Electrical Requirement 115 VAC, 60 Hz, 3 Amp


• Pneumatic Requirement 80 psi, 7.8 scfm

 *-Contact UMG for Customizing our AE2001 Inserter

Our AE2001 Bulk Eyelet Bench Top Inserter unit is a proven flexible, cost effective solution for low volume assembly.

AE2001 Semi-Automatic Bulk Eyelet Bench Top Inserter
